Ensuring Uncompromising Quality in Welded Piping Assembly

Table of Contents:

1. Introduction: The Significance of Quality in Welded Piping Assemblies

2. Alloy Welding Pipe Assembly: A Foundation for Integrity

2.1. Material Selection: Choosing the Right Alloy for the Application

2.2. Welding Techniques: Precision and Expertise

2.3. Preparation and Fit-Up: Ensuring Accurate Alignment

3. Comprehensive Quality Inspection Procedures

3.1. Visual Inspection: Detecting Surface Imperfections

3.2. Non-Destructive Testing (NDT): Unveiling Subsurface Defects

3.2.1. Radiographic Testing (RT)

3.2.2. Ultrasonic Testing (UT)

3.2.3. Magnetic Particle Testing (MT)

3.2.4. Liquid Penetrant Testing (PT)

3.3. PMI Piping: Positive Material Identification for Traceability

3.4. Air Tightness Testing: Preventing Leakage

3.5. Pressure Testing: Verifying Structural Integrity

3.6. Corrosion Resistance Testing: Ensuring Longevity

4. The Importance of International Standards and Certifications

4.1. ISO 9001 Quality Management System: A Framework for Excellence

4.2. DNV and LR Certifications: Independent Validation of Quality

4.3. Welder Certification: Guaranteeing Competence

5. PMI Piping: A Commitment to Quality and Innovation

5.1. Experience and Expertise in Corrosion Resistant Alloys Welded Piping

5.2. Custom Alloys Welded Pipe Solutions: Tailored to Your Needs

5.3. Wide Range of Alloy Options: nickel alloys, duplex superduplex, stainless steel

6. Serving the European Market: Understanding Specific Requirements

7. Conclusion: Partnering with PMI Piping for Uncompromising Quality

8. Contact Information: Get in Touch with PMI Piping

9. Visit Our Website: Explore Our Range of Welded Pipes

Contents:

1. Introduction: The Significance of Quality in Welded Piping Assemblies

Welded piping assemblies form the backbone of numerous industrial processes. Their integrity is not just a matter of efficiency; it is a critical component of safety and environmental responsibility. Failures in these systems can lead to costly downtime, hazardous leaks, and even catastrophic accidents. Therefore, ensuring the highest levels of quality in welded piping is of paramount importance. This is especially true when dealing with aggressive environments and demanding applications that require specialized alloys.

2. Alloy Welding Pipe Assembly: A Foundation for Integrity

The quality of a welded piping assembly is intrinsically linked to the assembly process itself. Meticulous attention to detail and adherence to best practices are crucial at every stage.

2.1 Material Selection: Choosing the Right Alloy for the Application: The selection of the appropriate alloy is the first and most critical step. Factors such as operating temperature, pressure, and the corrosive nature of the transported fluid must be carefully considered. Different alloys offer varying levels of resistance to corrosion, high temperatures, and mechanical stress. PMI Piping offers a wide range of alloy options, including nickel alloys, duplex superduplex, and stainless steel, enabling us to provide solutions tailored to specific application requirements.

2.2. Welding Techniques: Precision and Expertise: Selecting the correct welding technique is crucial for achieving a strong and reliable weld. Techniques such as Gas Tungsten Arc Welding (GTAW), Gas Metal Arc Welding (GMAW), and Submerged Arc Welding (SAW) are commonly employed, each with its own advantages and disadvantages depending on the alloy and application. Skilled and certified welders are essential for executing these techniques flawlessly.

2.3. Preparation and Fit-Up: Ensuring Accurate Alignment: Proper preparation of the pipe ends and accurate fit-up are essential for creating a sound weld. This includes cleaning the surfaces, beveling the edges, and ensuring precise alignment before welding. Inadequate preparation can lead to weld defects and compromised structural integrity.

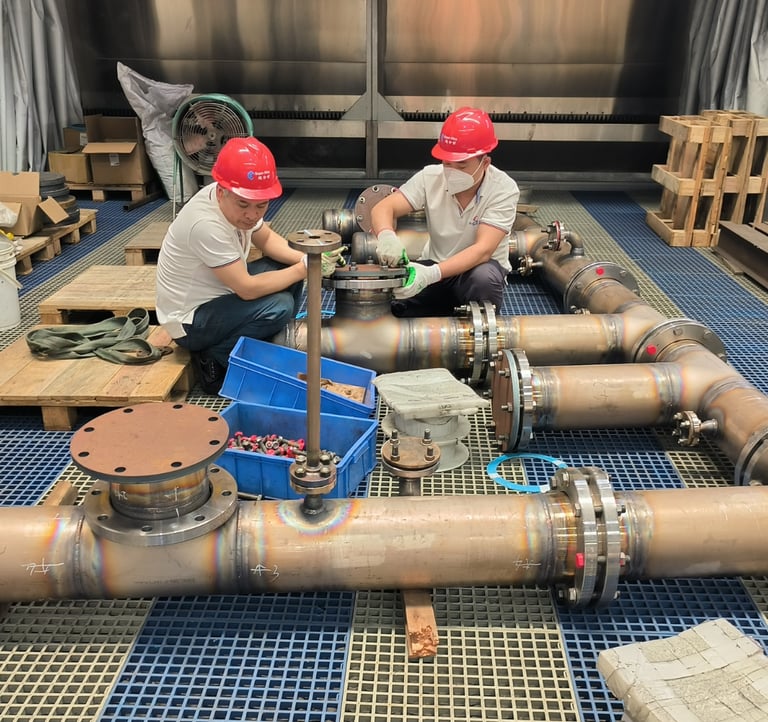

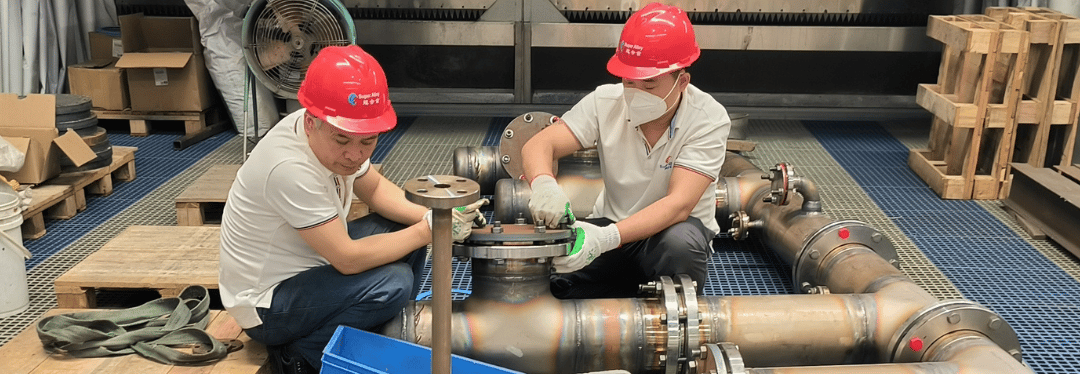

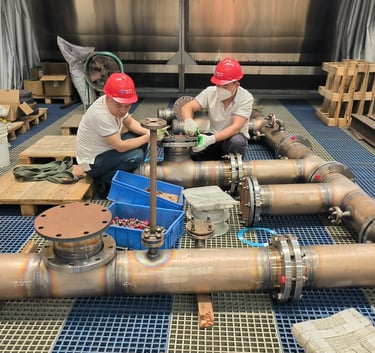

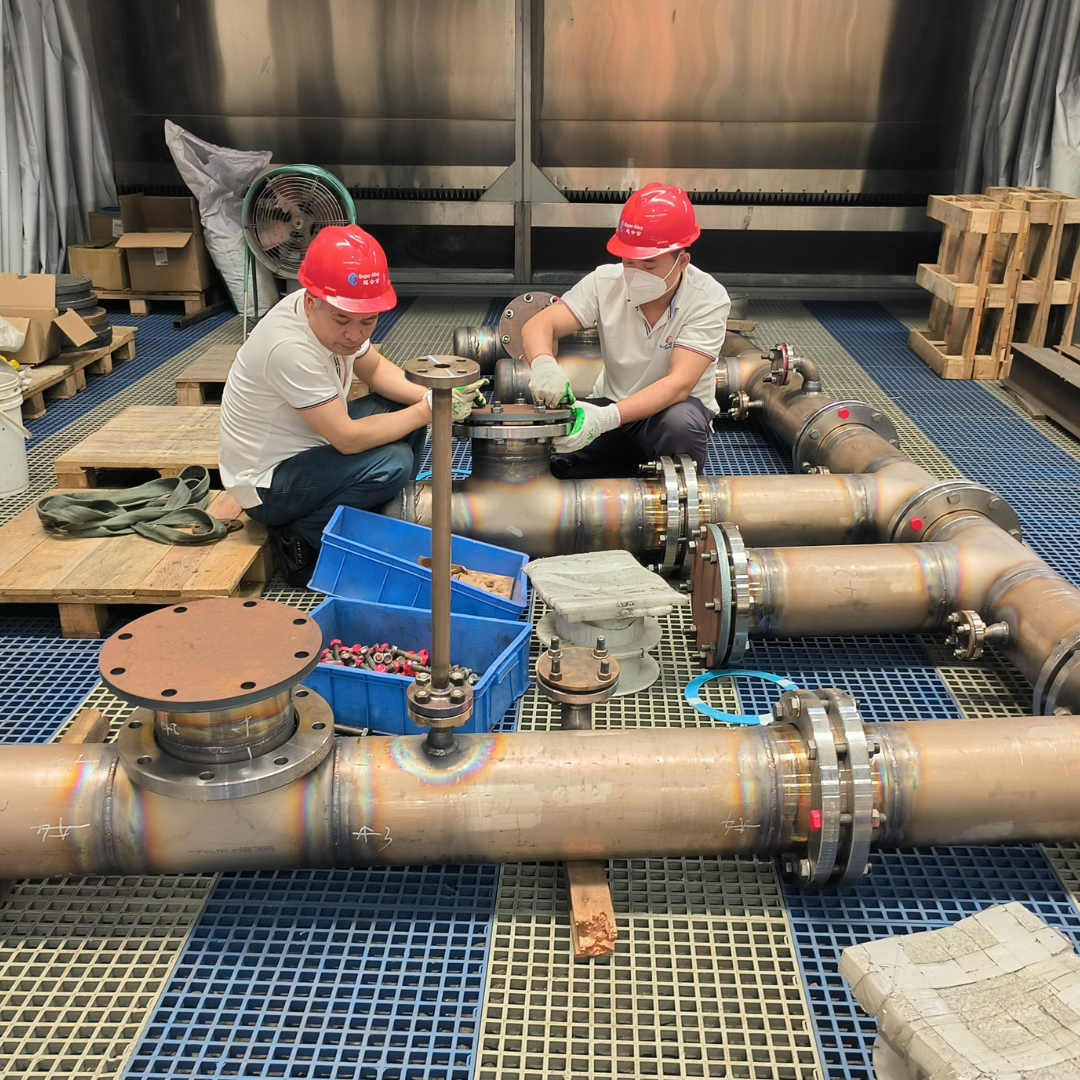

PMI Piping Welded Piping Assembly (1)

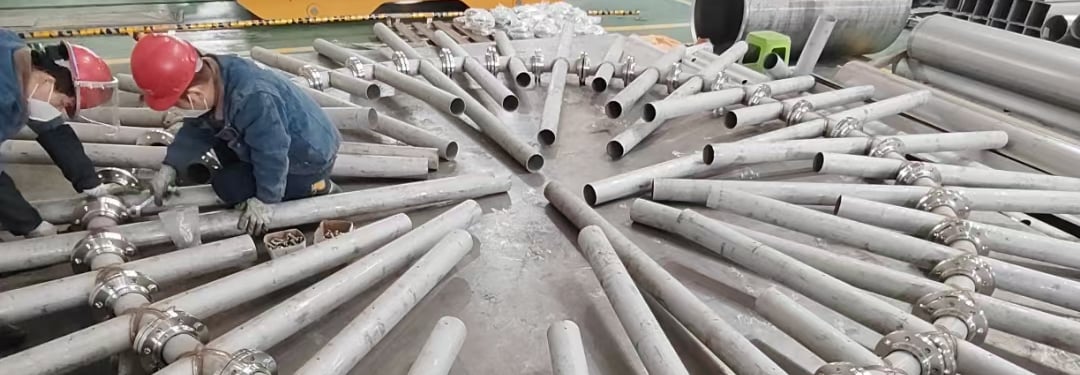

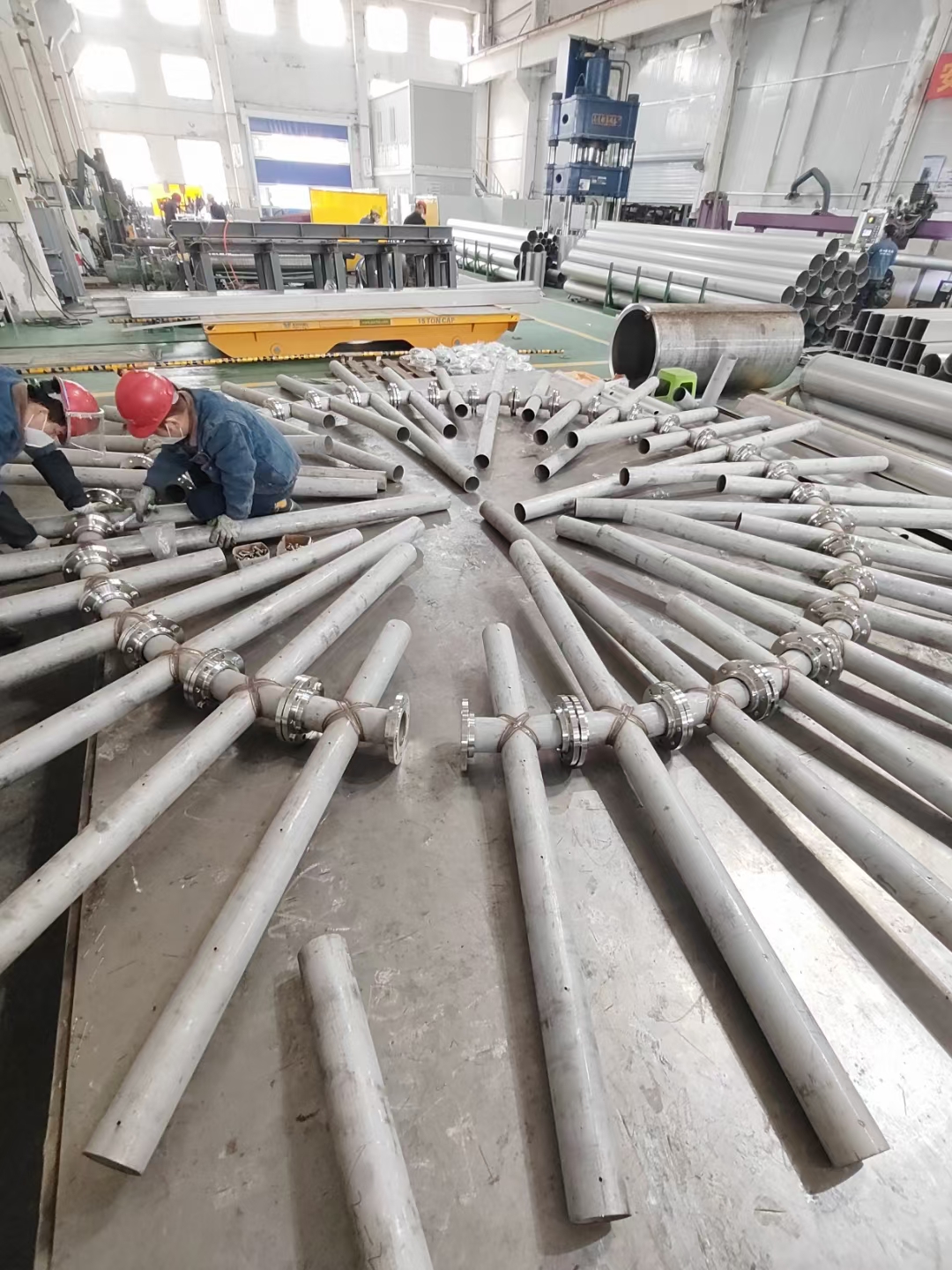

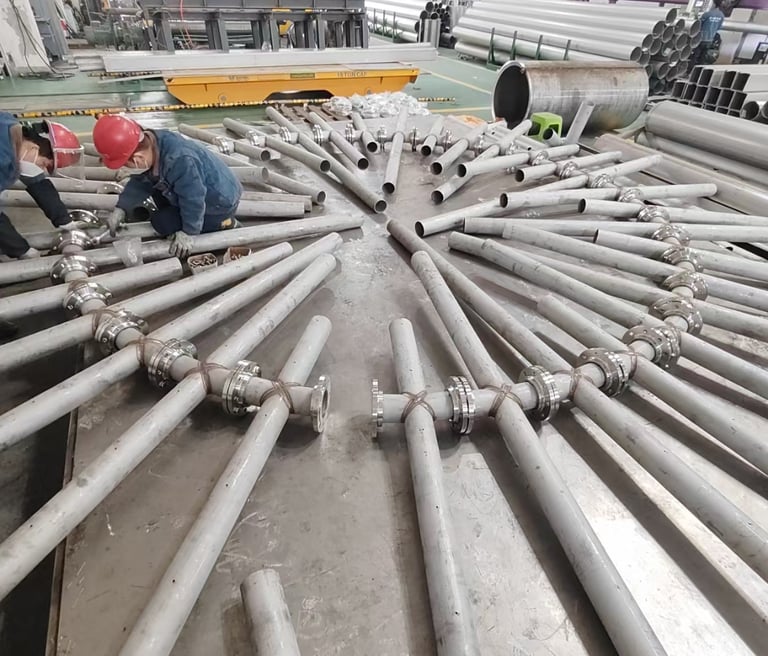

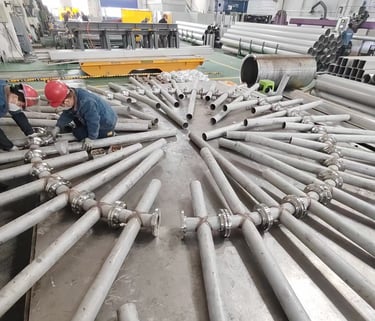

PMI Piping Welded Piping Assembly (2)

3. Comprehensive Quality Inspection Procedures

A rigorous quality inspection program is essential for verifying the integrity of welded piping assemblies. PMI Piping employs a multi-faceted approach, incorporating a range of techniques to detect both surface and subsurface imperfections.

3.1 Visual Inspection: Detecting Surface Imperfections: Visual inspection is the first line of defense, allowing trained inspectors to identify surface defects such as cracks, porosity, and incomplete fusion.

3.2 Non-Destructive Testing (NDT): Unveiling Subsurface Defects: NDT methods are crucial for detecting flaws that are not visible to the naked eye.

3.2.1. Radiographic Testing (RT): Uses X-rays or gamma rays to create an image of the weld, revealing internal defects such as porosity, inclusions, and cracks.

3.2.2. Ultrasonic Testing (UT): Uses high-frequency sound waves to detect internal defects by analyzing the reflection patterns.

3.2.3. Magnetic Particle Testing (MT): Detects surface and near-surface defects in ferromagnetic materials by applying a magnetic field and observing the accumulation of magnetic particles at defect locations.

3.2.4. Liquid Penetrant Testing (PT): Detects surface-breaking defects by applying a liquid penetrant that seeps into cracks and then highlighting it with a developer.

3.3 PMI Piping: Positive Material Identification for Traceability: To ensure the correct alloy is used, PMI Piping utilizes Positive Material Identification (PMI Piping) technology. This verifies the chemical composition of the materials used in the welded piping, ensuring they match the specified requirements and maintain traceability throughout the manufacturing process.

3.4 Air Tightness Testing: Preventing Leakage: Air tightness testing is performed to verify the integrity of the welds and ensure that there are no leaks. This is particularly important for applications where even small leaks can be problematic.

3.5 Pressure Testing: Verifying Structural Integrity: Pressure testing involves subjecting the welded piping assembly to a specified pressure to verify its structural integrity and detect any leaks or weaknesses. This test simulates the operating conditions the piping will experience in service.

3.6 Corrosion Resistance Testing: Ensuring Longevity: For applications involving corrosive fluids, corrosion resistance testing is essential. This can involve exposing the welded piping to simulated corrosive environments to assess its resistance to degradation over time.

4. The Importance of International Standards and Certifications

Adhering to international standards and obtaining relevant certifications demonstrates a commitment to quality and provides assurance to customers that the products meet stringent requirements.

4.1 ISO 9001 Quality Management System: A Framework for Excellence: ISO 9001 is an internationally recognized standard that specifies requirements for a quality management system. PMI Piping strictly implements the ISO9001 quality system to ensure high quality. Compliance with ISO 9001 demonstrates a commitment to continuous improvement and customer satisfaction.

4.2 DNV and LR Certifications: Independent Validation of Quality: Certifications from reputable organizations like DNV (Det Norske Veritas) and LR (Lloyd's Register) provide independent validation of a company's quality management system and manufacturing processes. PMI Piping holds DNV IS0 9001 Quality System Certification, DNV Welder Certified, LR Outer Tube Product Certification, CCS Welding Procedure Qualification, Production License of Special Equipment, and LR Welded Construction Manufacturers Certified, demonstrating our unwavering commitment to quality.

4.3 Welder Certification: Guaranteeing Competence: Welder certification programs ensure that welders possess the necessary skills and knowledge to perform high-quality welds. Certified welders have undergone rigorous training and testing to demonstrate their competence in various welding techniques.

5. PMI Piping: A Commitment to Quality and Innovation

PMI Piping is a leading Corrosion Resistant Alloys Welded Piping Manufacturer and Exporter dedicated to providing high-quality welded piping solutions to customers worldwide. With years of experience and a team of skilled professionals, we are committed to exceeding customer expectations.

5.1 Experience and Expertise in Corrosion Resistant Alloys Welded Piping: PMI Piping specializes in the fabrication of welded piping from a wide range of corrosion resistant alloys. Our expertise in this area allows us to provide solutions for even the most challenging applications.

5.2 Custom Alloys Welded Pipe Solutions: Tailored to Your Needs: We understand that every application is unique. That's why we offer Custom Alloys Welded Pipe solutions tailored to meet specific customer requirements.

5.3 Wide Range of Alloy Options: nickel alloys, duplex superduplex, stainless steel: We offer a comprehensive range of alloy options, including nickel alloys, duplex superduplex, and stainless steel, allowing us to provide the optimal solution for any application.

6. Serving the European Market: Understanding Specific Requirements

The European market demands the highest levels of quality and compliance with stringent regulations. PMI Piping is committed to meeting these requirements and providing our European customers with reliable and high-performance welded piping solutions. We understand the specific standards and certifications required in Europe and ensure that our products comply with all applicable regulations.

7. Conclusion: Partnering with PMI Piping for Uncompromising Quality

In conclusion, ensuring quality in welded piping assemblies requires a meticulous approach, from material selection and welding techniques to comprehensive inspection procedures and adherence to international standards. PMI Piping is committed to providing our customers with welded piping solutions that meet the highest standards of quality and reliability. Our experience, expertise, and commitment to innovation make us the ideal partner for your next project.

8. Contact Information: Get in Touch with PMI Piping

For inquiries and further information, please contact the PMI Piping sales office: sales@pmipiping.com. Our dedicated team is ready to assist you with your specific needs and provide tailored solutions.

9. Visit Our Website: Explore Our Range of Welded Pipes

For more information about our comprehensive range of welded pipes, including Corrosion Resistant Alloys Welded Piping, Custom Alloys Welded Pipe, and other specialized solutions, please visit our website: www.pmipiping.com.

Summary:

The quality of welded piping is paramount in ensuring the safety, efficiency, and longevity of industrial processes. This article highlights the critical aspects of achieving uncompromising quality, from meticulous alloy selection and precision welding to rigorous inspection procedures. PMI Piping stands as a leading Corrosion Resistant Alloys Welded Piping Manufacturer and Exporter, committed to providing exceptional products to the global market. Our adherence to international standards, exemplified by certifications like DNV IS0 9001, and our expertise in working with materials like nickel alloys, duplex superduplex, and stainless steel, position us as a trusted partner for industries demanding the highest levels of performance. We provide Custom Alloys Welded Pipe solutions tailored to your specific needs. Contact us at sales@pmipiping.com or visit www.pmipiping.com to explore our comprehensive range of welded pipes. By choosing PMI Piping, you are choosing uncompromising quality and a partner dedicated to your success.

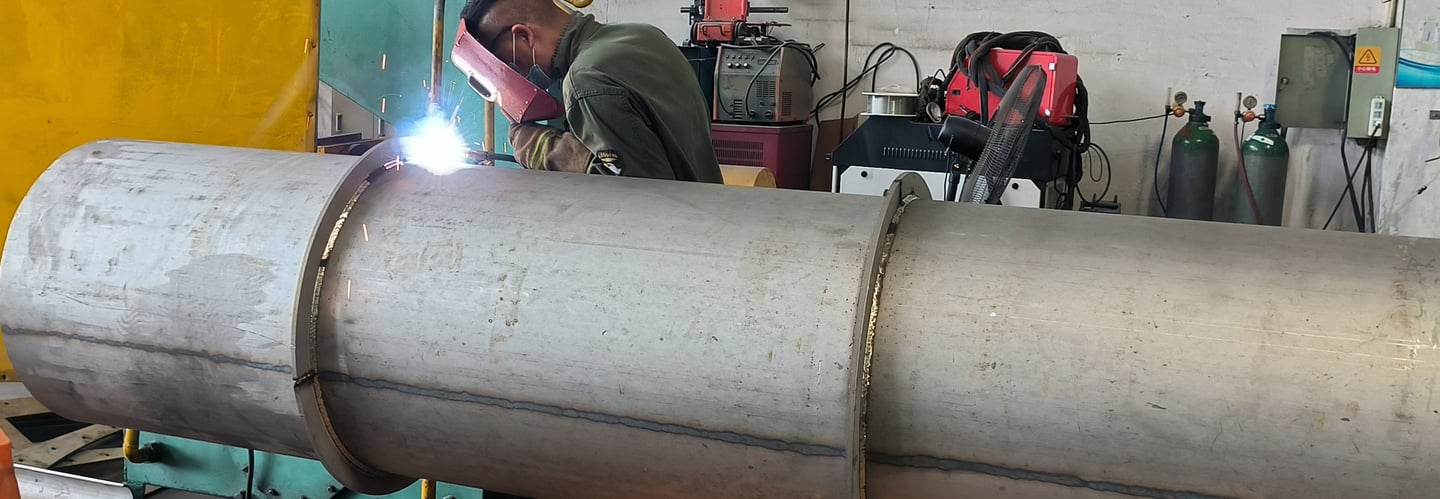

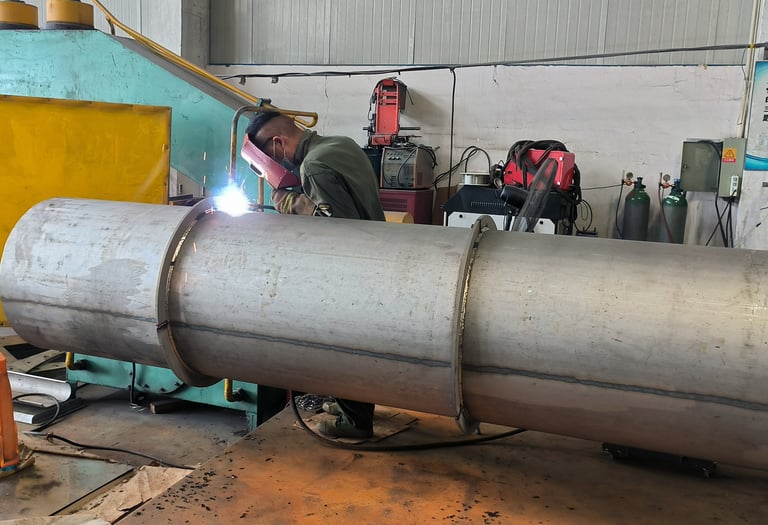

PMI Piping Welded Piping Assembly (3)
