1. Introduction

Welded pipes are engineered tubular products that are manufactured by joining steel or other metal sheets or plates together using various welding techniques. They serve a vital role in transporting fluids and gases across a wide spectrum of industrial applications. Their method of production distinguishes them from seamless pipes, which are manufactured from a solid billet. This difference in manufacturing impacts their cost, strength characteristics, and suitability for specific applications.

2. Welded Pipe Manufacturing Process: An Overview

The fundamental process of welded pipe manufacturing involves several key stages:

Coil Preparation: The process typically begins with a coil of steel or the desired alloy. This coil is uncoiled and flattened.

Forming: The flattened strip is then passed through a series of rollers that gradually shape it into a cylindrical form.

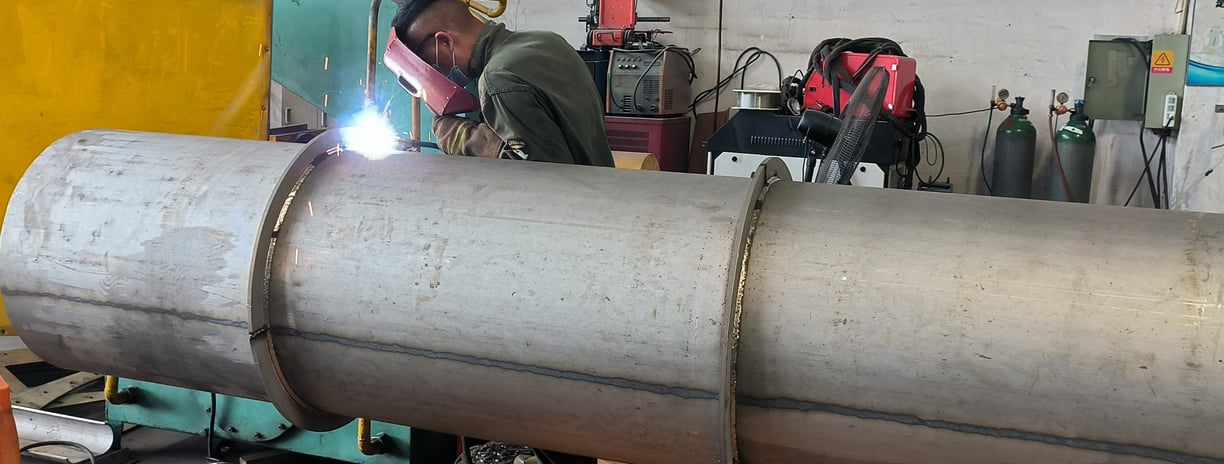

Welding: The edges of the formed cylinder are then joined together using one of several welding techniques. This is the most critical stage.

Sizing and Straightening: The welded pipe is then sized to the specified dimensions and straightened to ensure its accuracy.

Testing and Inspection: Rigorous testing and inspection procedures are employed to verify the integrity and quality of the weld and the pipe itself.

3. Electric Resistance Welding (ERW) Process

The Electric Resistance Welding (ERW) process is a widely used method for producing welded pipes, particularly for smaller diameter applications.

3.1 ERW Process Details

In ERW, a flat sheet of steel is cold-formed into a cylindrical shape. A high-frequency electrical current is then passed through the two edges of the steel cylinder. The resistance of the steel to this current generates heat, which melts the edges and forces them to bond together under pressure. Importantly, the ERW process does not require any welding filler material.

3.2 Advantages and Disadvantages of ERW

Advantages: High production speed, cost-effective for smaller diameters, good weld quality.

Disadvantages: Limited to specific materials and thicknesses, potential for weld defects if process parameters are not carefully controlled.

3.3 Applications of ERW Welded Pipes

ERW pipes are commonly used in applications such as water and gas pipelines, scaffolding, and structural applications.

4. Submerged Arc Welding (SAW) Process

The Submerged Arc Welding (SAW) process is typically employed for manufacturing larger diameter pipes and pipes requiring thicker walls.

4.1 SAW Process Details

SAW involves forming an arc between a continuously fed electrode and the workpiece. A granular flux is used to completely submerge the arc, generating protective gases and slag. The flux also can add alloying elements to the weld pool. The arc moves along the joint line, and excess flux is recycled. Because the arc is submerged, heat loss is minimized, and deep penetration welds are achievable.

4.2 Advantages and Disadvantages of SAW

Advantages: Suitable for thick materials, high deposition rates, excellent weld quality, good for long welds.

Disadvantages: Not suitable for all materials, higher initial equipment cost, requires specialized training.

4.3 Applications of SAW Welded Pipes

SAW pipes are extensively used in the oil and gas industry, for long-distance pipelines, and in structural applications requiring high strength and integrity.

5. Material Selection: The Key to Performance and Longevity

The choice of material is paramount in determining the performance and lifespan of a welded pipe. The application and operating environment dictate the required properties, including strength, corrosion resistance, and temperature tolerance. Several alloy groups are commonly used:

5.1 Stainless Steel Welded Pipes

Stainless steel pipes offer excellent corrosion resistance due to the presence of chromium, which forms a passive layer that protects the underlying metal. Different grades of stainless steel, such as 304, 316, and 317, are available, each with varying levels of corrosion resistance and mechanical properties.

5.2 Duplex Superduplex Welded Pipes

Duplex superduplex stainless steels are characterized by their high strength and superior corrosion resistance compared to conventional stainless steels. They are particularly well-suited for harsh environments where chloride pitting and stress corrosion cracking are concerns.

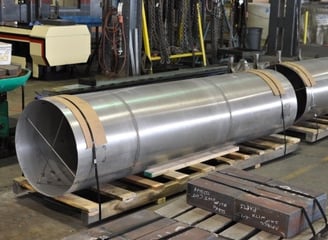

5.3 Nickel Alloys Welded Pipes

Nickel alloys offer exceptional corrosion resistance, particularly in highly corrosive environments such as those involving acids and alkalis. They also exhibit excellent high-temperature strength and oxidation resistance. Common nickel alloys used in pipe manufacturing include Inconel, Hastelloy, and Monel.

5.4 Importance of Custom Alloys Welded Pipe

In some specialized applications, standard alloys may not meet the required performance criteria. In these cases, Custom Alloys Welded Pipe becomes necessary. These pipes are manufactured using alloys tailored to specific chemical compositions and mechanical properties, ensuring optimal performance in demanding environments.

6. Quality Control and Inspection: Ensuring Integrity

Rigorous quality control and inspection procedures are essential to ensure the integrity of welded pipes. These procedures typically include:

Visual Inspection: Examining the pipe for surface defects, such as cracks, porosity, and weld imperfections.

Dimensional Inspection: Verifying that the pipe meets the specified dimensions, including diameter, wall thickness, and length.

Non-Destructive Testing (NDT): Employing techniques such as ultrasonic testing, radiographic testing, and magnetic particle testing to detect internal flaws and weld defects without damaging the pipe.

Hydrostatic Testing: Pressurizing the pipe to a specified level to verify its strength and leak tightness.

Positive Material Identification (PMI): PMI Piping is crucial for confirming the alloy composition of the pipe, ensuring that the correct material has been used. This is especially important for critical applications where the wrong alloy could lead to catastrophic failure.

6.1 The Role of PMI Piping in Quality Assurance

PMI Piping plays a vital role in ensuring the reliability and safety of piping systems. They specialize in providing high-quality welded pipes that meet stringent industry standards. Their commitment to quality control, including Positive Material Identification (PMI), ensures that customers receive pipes that are fit for purpose and perform reliably over their intended lifespan. By implementing thorough inspection processes and utilizing advanced testing methods, PMI Piping guarantees that its products meet or exceed customer expectations.

7. Sourcing Welded Pipes from China: Key Considerations

China has emerged as a major global supplier of welded pipes, offering competitive pricing and a wide range of products. When sourcing welded pipes from China, it is essential to consider the following:

Manufacturer Reputation: Choose a reputable China Corrosion Resistant Alloys Welded Piping Manufacturer and Exporter with a proven track record of quality and reliability.

Certifications: Ensure that the manufacturer holds relevant certifications, such as ISO 9001, API, and PED.

Quality Control Procedures: Verify that the manufacturer has robust quality control procedures in place, including PMI and NDT.

Communication and Logistics: Establish clear communication channels and ensure efficient logistics to facilitate timely delivery.

8. Conclusion

The manufacturing of welded pipes is a complex process that requires careful control of materials, welding techniques, and quality control procedures. Understanding these processes is crucial for selecting the right type of pipe for a specific application and ensuring its long-term performance. As a global sourcing destination, China offers a wide array of options, but diligent due diligence is essential to identify reliable suppliers who can provide high-quality products.

9. Summary

Welded pipe manufacturing encompasses the processes of ERW and SAW, each suitable for varying pipe sizes and thicknesses. The material selection, which includes stainless steel, duplex superduplex, and nickel alloys, heavily impacts the pipe's application and longevity. Custom Alloys Welded Pipe offers tailored solutions for niche requirements. Rigorous quality control, including PMI Piping, is paramount to ensure structural integrity. Sourcing from a China Corrosion Resistant Alloys Welded Piping Manufacturer and Exporter requires careful evaluation of reputation, certifications, and quality assurance measures. For further inquiries and to explore our range of welded pipes, please visit www.pmipiping.com or contact our sales office at sales@pmipiping.com

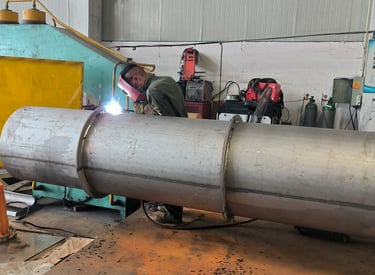

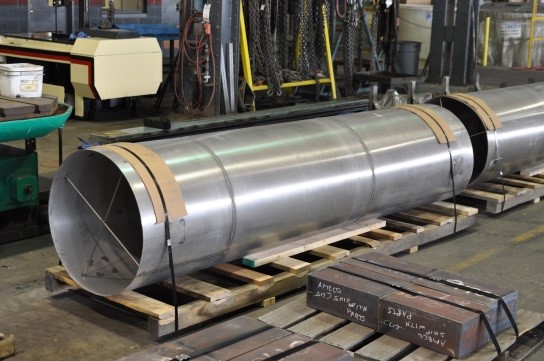

Welded Pipes Manufacturing Process
